Circular vibrating screen parameters:

Model	Number of layers	Screen size (mm)	Maximum feed size (mm)	Processing capacity (t/h)	Vibration frequency (Hz)	Motor Power (kw)	Weight (kg)	Dimensions (mmmmmm)
2YK-1230	2	1200*3000	100	7.5-80	16.2	5.5	2340	390019001000
3YK-1230	3	1200*3000	100	7.5-80	16.2	7.5	3050	390019001500
3YK-1548	3	1500*4800	200	30-200	13-16	15	6866	590621001900
4YK-1548	4	1500*4800	200	30-250	13-16	18.5	7360	590621002150
2YK-1854	2	1800*5400	250	50-300	16.2	18.5	6769	650925361810
3YK-1854	3	1800*5400	250	50-300	16.2	22	8285	650925361910
4YK-1854	4	1800*5400	250	50-300	16.2	30	9796	650925362250
2YK-2160	2	2100*6000	250	100-400	16.2	30	9680	715026702120
3YK-2160	3	2100*6000	250	100-400	16.2	30	10206	715026702270
4YK-2160	4	2100*6000	250	100-400	16.2	37	11800	715026702650
2YK-2460	2	2400*6000	300	150-600	16.2	30	80130	715029002120
3YK-2460	3	2400*6000	300	150-600	16.2	30	12350	715029002350
4YK-2460	4	2400*6000	300	150-600	16.2	37	13850	715029002680
3YK-2475	3	2400*7500	300	200-650	16.2	1835*2	14250	730029002350

Note: Parameters are subject to change without prior notice, please contact us.

Introduction to circular vibrating screen:

The YK/YA series vibrating screen produced by Phoenix is ??a circular vibrating screen, also called a circular vibrating screen. The circular vibrating screen is a multi-layer, high-efficiency new screening equipment. The vibrating screen adopts a cylindrical eccentric shaft exciter and a partial block to adjust the amplitude, and the material sieve line length is long, and the screening specifications are many. It has the characteristics of reliable structure, strong excitation force, high screening efficiency, small vibration noise, sturdy and durable, convenient maintenance and safe use. It is suitable for mining and sandstone industry.

Principle of circular vibrating screen:

The circular vibrating screen screening machine mainly comprises a sieve box, a screen mesh, a vibrator, a vibration damping spring device and a bottom frame. The side plate of the sieve machine is made of high-quality steel plate, and the side plate is connected with the beam and the vibration stirrer base by high-strength bolts or ring groove rivets, and the cylinder type eccentric shaft vibration exciter and the partial block are used to adjust the amplitude. The vibrator is mounted on the side plate of the screen box, and is driven by the motor through the V-belt to cause the eccentric block of the exciter to rotate at a high speed, generating a large centrifugal inertial force, exciting the screen box to generate a circular motion of a certain amplitude, and the material on the screen is inclined. The screen surface is subjected to the impulse transmitted by the screen box to generate a continuous throwing motion, and the particles which are smaller than the sieve holes are sieved in the process of meeting the screen surface, thereby achieving classification.

Circular vibrating screen performance characteristics:

1. The structure is novel, the technology is advanced, and the eccentric block is used as the exciting force, and the exciting force is strong.

2. It adopts small amplitude, high frequency and large dip angle structure, so it has high screening efficiency, large processing capacity, long life, low power consumption and low noise.

3. It adopts spring steel braided mesh or punched sieve plate, which has long service life and is not easy to block holes;

4. It adopts tire coupling, flexible connection and stable operation.

5. Thin oil lubrication ensures that the bearing lubrication is always in a good state, so that the bearing heat and other problems are completely solved, the spindle bearing is kept at a constant temperature, and the maintenance cycle and service life are prolonged.

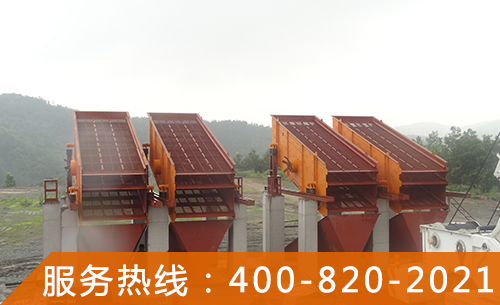

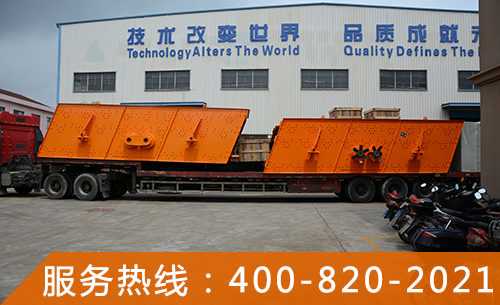

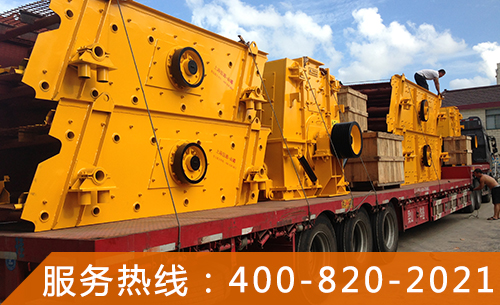

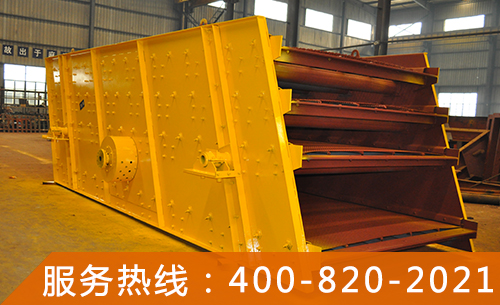

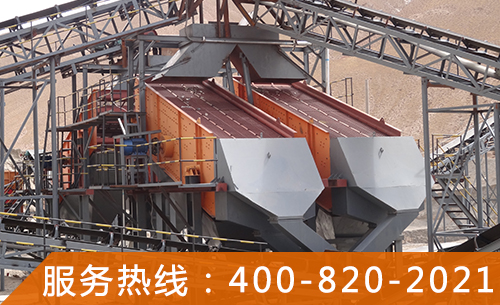

Round vibrating screen factory picture:
