PF counterattack parameters:
|
Model |
Rotor diameter (mm) |
Dimension of (mm*mm) |
Maximum (mm) |
Processing (t/h) |
Motor power (kw) |
Weight (t) |
Outline size (mm) |
|
PF-1007 |
1000×700 |
400×730 |
300 |
25-45 |
30--55 |
9.5 |
2400×1558×2660 |
|
PF-1010 |
1000×1050 |
400×1080 |
350 |
50-80 |
55-75 |
12.2 |
2400×2250×2620 |
|
PF-1210 |
1250×1050 |
400×1280 |
350 |
80-120 |
110-132 |
14.2 |
2690×2338×2890 |
|
PF-1214 |
1250×1400 |
400×1430 |
350 |
100-160 |
132-160 |
18.5 |
2690×2688×2890 |
|
PF-1310 |
1300×1050 |
490×1170 |
400 |
80-140 |
110-160 |
13.5 |
2780×2478×2855 |
|
PF-1315 |
1320×1500 |
860×1520 |
500 |
150-220 |
220 |
20.9 |
3350×2710×2670 |
|
PF-1316 |
1300×1600 |
858×1650 |
460 |
150-200 |
200 |
20.5 |
3096×3273×2667 |
|
PF-1415 |
1450×1500 |
900×1650 |
500 |
200-260 |
260-280 |
27.1 |
3400×3500×3280 |
|
PF-1515 |
1500×1500 |
980×1610 |
500 |
220-280 |
315 |
30.5 |
3950×3350×3055 |
|
PF-1500 |
1530×1500 |
1530×500 |
300 |
230-320 |
220-315 |
28 |
3300×3100×3060 |
Note: If the parameters are updated, please contact us without further notice.
Introduction to PF counterattack:
The PF series impact crusher is a product developed by the Phoenix R&D department with its own advantages. This product can crush all kinds of coarse, medium and fine materials (granite, limestone, concrete, etc.) with a feed particle size not exceeding 500mm and compressive strength not exceeding 350MPa. It has finished products into cubes, no tension and cracks, and has a large crushing ratio. High crushing efficiency and convenient maintenance.
PF counterattack works:
The PF impact crusher is a crushing machine that uses impact energy to break up materials. When it is working, the rotor rotates at high speed under the driving of the motor. When the material enters the action area of ??the hammer, it collides with the hammer on the rotor, and then is thrown to the counter-attack device to break again, and then rebounds from the counter-attack. Returning to the hammer hammer action area, the process is repeated, and the process is repeated from large to small, and the material is broken into the first, second and third counter-attack chambers until the material is crushed to the required particle size and discharged from the discharge port. Adjusting the gap between the counter-rack and the rotor can achieve the purpose of changing the material discharge size and material shape.
PF counterattack performance characteristics:
1. The counter-breaking feed inlet is large, the crushing chamber is high, the material hardness is high, the block size is large, and the product powder is less;
2, compact structure, strong machine rigidity, the rotor has a large moment of inertia;
3. The backlash plate and the plate hammer gap can be easily adjusted, and the discharge granularity and particle shape are well controlled;
4. No key connection, convenient maintenance, economical and reliable;
5, high chrome plate hammer, impact resistance, anti-wear, impact force;
6. Full crushing function, high productivity, small wear and tear, and high comprehensive efficiency.

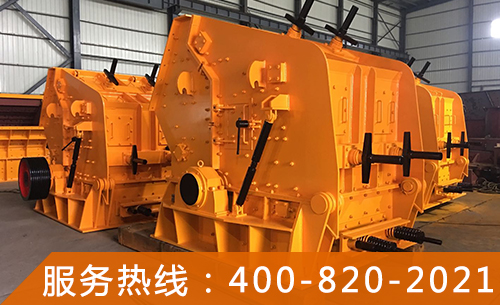

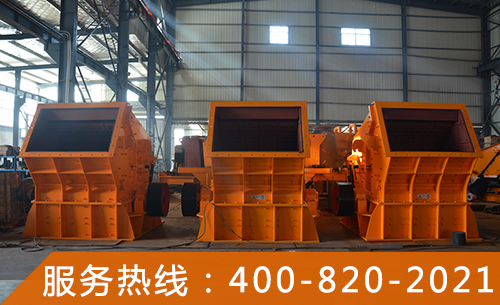

PF counterattacks the factory picture:

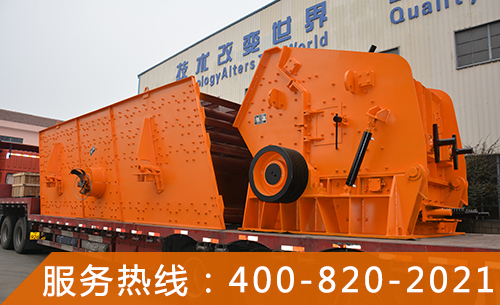

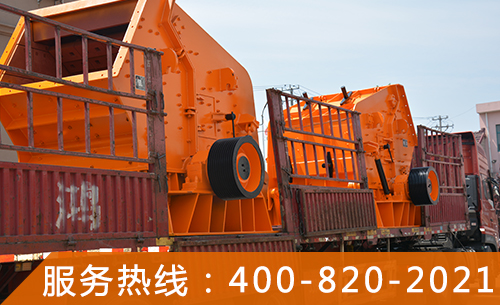

PF counterattack broken delivery pictures:

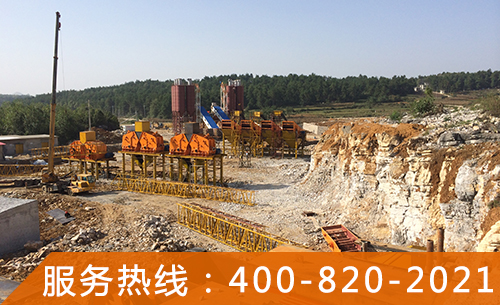

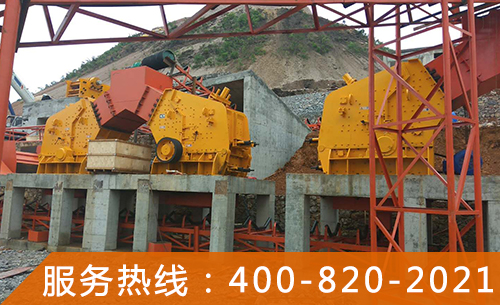

PF counterattacks the scene:
PF counterattacks the video:pending upgrade
PF counterattack price:
The price is determined by the model purchased by the customer, so please call the customer to request it.
